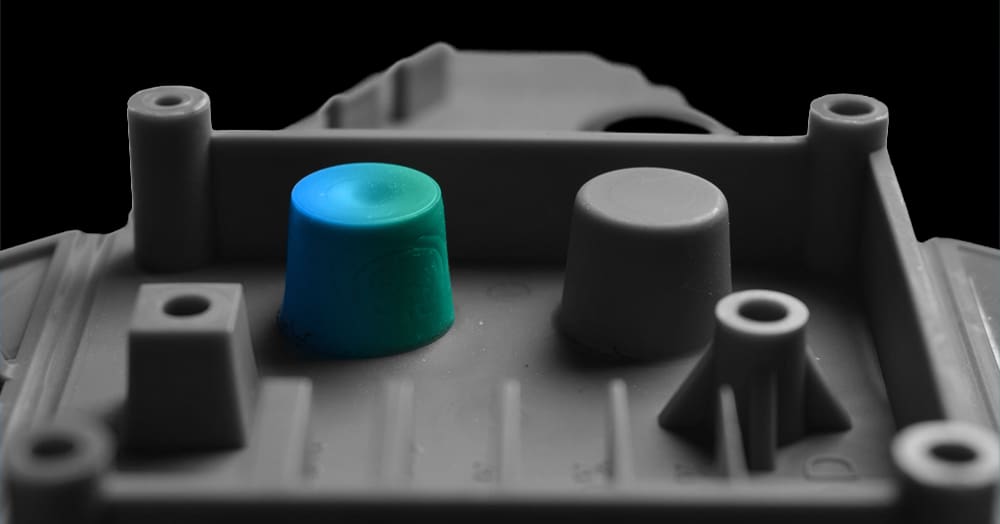

RJG Blog | Techniques for Reducing Warp and Sink in Injection Moulded Parts
Getting your Trinity Audio player ready...
|
For experienced injection moulders, dealing with defects like warp and sink marks is a familiar challenge. These issues can compromise the integrity and appearance of the final product, leading to increased scrap rates and costs. In this blog, RJG delve into advanced techniques and best practices to minimise these common defects and ensure high-quality parts.
1. Optimise Moulding Design
Uniform Wall Thickness: Maintaining a consistent wall thickness is crucial. Variations in thickness can lead to differential cooling rates and internal stresses, causing warping. Aim for uniform walls or gradual transitions if varying thicknesses are necessary.
Balanced Runner and Gate System: Ensure the runner and gate system is designed to fill the mould cavity uniformly. Balanced filling reduces internal stresses and the likelihood of warp. Consider using multiple gates for large or complex parts to ensure even material flow.
Proper Venting: Adequate venting helps eliminate air traps that can cause uneven cooling and shrinkage, leading to warping. Ensure vents are placed in appropriate locations to allow for efficient air escape.
2. Material Selection and Handling
Choose the Right Material: Different materials have different shrinkage rates. Selecting a material with a lower and more uniform shrinkage rate can significantly reduce the risk of warp and sink. For high-precision parts, consider using materials with high dimensional stability.
Proper Drying of Resins: Moisture in the resin can lead to inconsistencies during moulding. Ensure that the resin is thoroughly dried according to the manufacturer’s specifications to prevent defects related to moisture content.
3. Optimise Processing Condition
Controlled Cooling Rate: Implement a cooling system that provides uniform cooling across the part. Uneven cooling can lead to differential shrinkage and warping. Consider using conformal cooling channels in the mould design to enhance cooling efficiency and uniformity.
Adjust Packing Pressure and Time: Properly setting the packing pressure and time can help reduce sink marks. High packing pressure can compensate for material shrinkage in thicker sections of the part. Ensure the packing phase is long enough to solidify the material in critical areas before cooling fully begins.
Melt Temperature Control: Maintaining a consistent melt temperature is essential. Fluctuations can lead to inconsistent material flow and cooling, contributing to warp and sink marks. Monitor and control the barrel temperature settings carefully.
4. Mould Maintenance and Calibration
Regular Mould Maintenance: Ensure the mould is clean and well-maintained. Any wear or damage can lead to uneven pressure distribution and cooling, causing defects. Regular inspections and maintenance can prevent such issues.
Calibrate Machine Settings: Periodic calibration of the injection moulding machine is necessary to maintain consistent processing conditions. Ensure that the machine’s hydraulic, electrical, and mechanical systems are functioning correctly and within specified tolerances.
5. Simulation and Testing
Use Mould Flow Analysis: Employ mould flow simulation software during the design phase to predict and address potential issues related to warp and sink marks. These tools can help optimise gate locations, cooling channels, and other critical parameters before actual production.
Prototype Testing: Produce and evaluate prototypes before full-scale production. Testing allows for the identification and correction of potential issues, ensuring that the final mould design and processing conditions are optimal.
6. Post-Mould Techniques
Annealing: For some materials, annealing (controlled heating and cooling) after moulding can relieve internal stresses and reduce warping. Ensure that the annealing process is compatible with the material being used.
Part Design Adjustments: If warp and sink issues persist, consider revising the part design. Adding ribs, gussets, or other structural features can help reduce warping by increasing rigidity and promoting uniform cooling.
Conclusion
Reducing warp and sink marks in injection moulded parts requires a holistic approach that encompasses mould design, material selection, processing conditions, and post-moulding techniques. By implementing these advanced strategies, experienced injection moulders can significantly enhance part quality and reduce production costs. Continuous improvement and adaptation to new technologies and methodologies are essential for maintaining high standards in injection moulding.
