HASCO Innovative Ejector Delay Unit Z1725 Increases Process Reliability
|
Getting your Trinity Audio player ready...
|
The de-moulding stage during the injection moulding process can be optimised through the use of an ejector delay unit. The sprue and moulded part are cleanly separated from one another through a coordinated ejector movement.

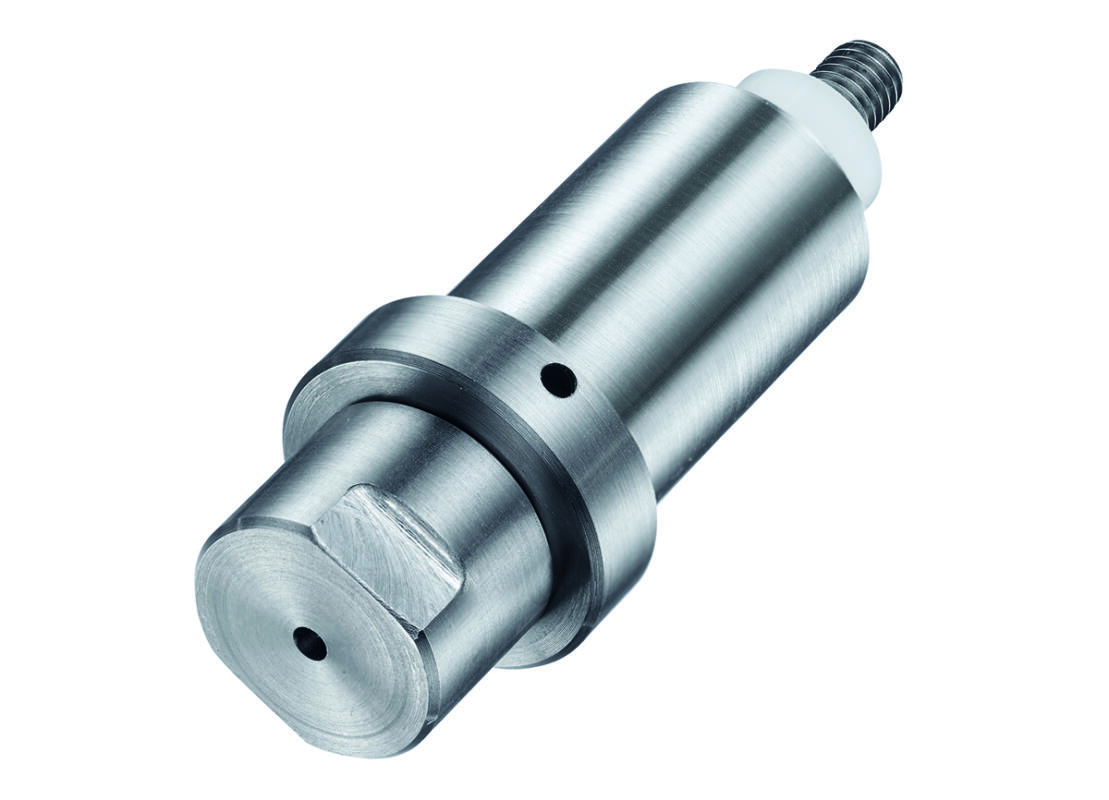

The new ejector delay unit Z1725/… from HASCO offers a simple solution for the efficient de-moulding and separation of sprues. The unit enables two-stage ejector de-moulding, in which the delay is ensured by an individual pocket depth and the ejector assembly.
Through the new delay unit, not only can the process reliability be considerably improved, but also the quality of the end products. Production downtimes are, thanks to the innovative design of the unit, a thing of the past. In addition, it offers maximum flexibility because it can be used without any minimum stroke requirements. With ejector sizes from 2 to 5.9 mm, this enables a variety of applications in different production processes.
The functioning of the ejector delay unit is based on the transfer of axial forces through friction between the plastic sleeve and the drill-hole wall. This friction force can be adjusted by a conical, self-securing screw and adapted to the specific requirements. The plastic sleeve should sit approximately 3 mm deep in the location hole. The precise position of the ejector pin is achieved by a flattened circular pocket, during which the desired delay is integrated into the pocket depth of the ejector package.
Overall, the HASCO ejector delay unit offers an efficient solution to meet challenging demands in the de-moulding of injection-moulded parts. The simple retrofitting of existing moulds facilitates its integration into existing production lines.
Read more from HASCO here.
